Perspectives of a Programmer: Red-Black Trees

    This is a tutorial on coding red-black trees. I have tried to make it as easy to understand and detailed as possible. It covers both insertion and deletion from a red-black tree data structure. If you have any questions or any suggestions for improvement for future tutorials, please feel free to contact me at computerghost@hotmail.com or leave a comment. I don't check my email but about once a month, so don't ask me homework problems or questions that need an answer immediately.

What is a red-black tree?

    A red-black tree is a type of binary search tree that aims to solve a problem that binary search trees (abbreviated BST) seem to have by using some... um... rather complicated algorithms.

    So, what are these binary search trees and what problem do they have? A binary search tree is a data structure used for storing data in a way that is very fast. You can search for data quickly, and you can insert and delete data quickly. The term for measuring this quickliness is "asymptotic complexity", "big-O", "big-theta", et cetera et cetera. A BST runs in logarithmic time. You don't need to know what this means to use them other than that "logarithmic time" is rather fast, but I promise that it would be some interesting reading if you do want to look those terms up.

A BST is fast because of the way it stores its data. Say you want to find the 7 in the above BST (remember, BST is short for binary search tree, and I hate typing out that long name). You start at the 5, but 7 is greater than 5, so you go to the right. Then you're at the 8, but 7 is less than 8, so you go left and find it! You visit a total of three nodes (of the 7 in there) to find a value. It may not seem like much, but if you had two million values in that tree, you would still only have to search through at most twenty-one to find one.

Unfortunately, binary search trees have a major problem sometimes. Because of the way they insert things (exactly like finding them), inserting elements 1-2000000 in ascending order messes up the tree. In such a case, it would take two million steps to find the number two million. Trees like this are called "skewed". The first picture of the tree was what is called "balanced".

Balanced trees are better than skewed trees. Unfortunately, unless you're putting data into a BST in random order, you're likely to make it skewed.

    Red-black trees solve the skewing problem of BSTs by making sure that the tree is still balanced after every insertion or deletion of data. This extra work that it does after these operations may sound like a bad idea at first, but the work pays off in the long run. The cost of doing the extra work looks like nothing when compared to the speed increase that comes with keeping the tree balanced.

    The red-black tree has a set of rules for keeping the tree balanced. First, a node can be either red or black. Second, the root is black. Third, all leaves are the same color as the root. Fourth, both children of every red node must be black. Fifth, every path from a node straight down to any of its decendant leaves has to have the same number of black nodes. (Wikipedia¹)

    The fourth and fifth rules are the ones that we have to focus on mainly. If you notice in the balanced BST, the height on both sides of any node is the same. The red-black tree forces this setup by rule five. That is why it works.

    Unfortunately, keeping the tree perfectly balanced is a real pain and requires too much computing power, and that's where the red nodes come in. The red nodes give us a little bit of leeway in how close to perfectly balanced the tree is. There is rule four, though, that keeps us from abusing this leeway too much.

In this tutorial, you will see many things!

    First, I am pretending that all null pointers in nodes actually point to an imaginary node that has no value but is black. Those imaginary nodes are the leaves. This allows us to do things like what is in the picture below.

    Second, you will notice that the examples are in C++. I seriously considered using C instead, but I eventually decided that C++ should be used since I'm better at it. The algorithms should be easily converted to any programming language, so have no worries about the language that I'm using.

    Third, private and protected data and functions are prepended by an underscore. This is a red flag that something shouldn't be used outside of the code it's designed to work with.

    Fourth, you will find an absense of const functions, templates, and other confusing stuff that takes focus away from the matter at hand.

    Lastly, if you look really hard, you might find a grammatical error! Please let me know if you do.

Let us begin with the design.

    Our red-black tree will have three useful member functions: find, insert, and erase. Also, we will need a testing function to make sure that we are doing everything correctly. To save space in our cpp file, they will all be coded inline.

    The public interface functions will be at the bottom of the class declaration, the helper functions will be above those, and the data will be higher still.

    The following snippet of code should do for us to start with (and, no, ending a sentence with a preposition does not count as a grammatical mistake).

You should scan through that and get an idea of how everything will be laid out and used.

Next, let's code the testing code.

Well, we simply want to insert and erase lots of random data, right? We won't worry about the find function since both insert and erase use it and will be testing it pretty thoroughly without our intervention. So, the test_insertion, test_erasing, and main function should look like the following code.

1    // Test insertion
2    // Fills the tree with a lot of random data
3    void test_insertion( rb_tree & tree, int count )
4    {
5        for( int i = 0; i != count; ++i ) {
6            int r = rand() % 3000;
7            tree.insert( r );
8            tree.check();
9        }
10   }
11
12
13   // Test erasing
14   // Erases random data from the tree
15   void test_erasing( rb_tree & tree, int count )
16   {
17       for( int i = 0; i != count; ++i ) {
18           int r = rand() % 3000;
19           tree.erase( r );
20           tree.check();
21       }
22   }
23
24
25   // Main function
26   int main()
27   {
28       try {
29           rb_tree tree;
30           test_insertion( tree, 1000 );
31           test_erasing( tree, 1000 );
32       }
33       catch( const char * e ) {
34           cerr << e << endl;
35           return 1;
36       }
37   }
38

Also, since we are using the rand function, we should include the cstdlib header file. I won't show you that code since it's easy to put in and is only one line.

Next, we need to code rb_tree::check. We need to make sure that the root is black, that the black height on each side of a node is the same, that there are no two red nodes in a row, and that a node's parent points back up to its actual parent.

1        //...
2
3        /*
4         * Helper functions
5         */
6
7
8        // A handy function for getting a node's color
9        // It even works for imaginary leaf nodes!
10       color_type _node_color( node_ptr node )
11       {
12           if( node )
13               return node->color;
14           return BLACK;
15       }
16
17
18       // Check helper function
19       // Returns the black height of a subtree
20       int _check( node_ptr subtree )
21       {
22           // Imaginary leaf? black height is 1
23           if( ! subtree )
24               return 1;
25
26           node_ptr left = subtree->left;
27           node_ptr right = subtree->right;
28
29           // Black height of both sides must be the same
30           int left_height = _check( left );
31           int right_height = _check( right );
32           if( left_height != right_height )
33               throw "black imbalance!";
34
35           // No two reds in a row
36           if( _node_color(subtree) == RED ) {
37               if( _node_color(left) == RED
38                   || _node_color(right) == RED )
39                   throw "two reds in a row!";
40           }
41
42           // We're black, the height is [left|right]_height + 1
43           else
44               ++ left_height;
45
46           // Make sure that the children's parents are correct
47           if( left && left->parent != subtree
48               || right && right->parent != subtree )
49               throw "parent pointer wrong!";
50
51           // Return our height
52           return left_height;
53       }
54
55
56   public:
57
58       /*
59        * Interface functions
60        */
61
62       // ...
63
64       // Make sure that the tree is valid
65       // Throws an error if it isn't.
66       void check()
67       {
68           if( _node_color(_root) == RED )
69               throw "root is red!";
70
71           _check( _root );
72       }
73
74   };
75

Our check function needed some help, so we coded a recursive _check function and a handy _node_color function. The _node_color works even with those imaginary black leaf nodes.

Next, we need the find function.

I will use an iterative algorithm instead of a recursive algorithm for finding data. Don't worry, it isn't too hard to understand.

1        // Find data in the tree
2        // Returns nullptr if not found; otherwise the node that
3        // contains the data.
4        node_ptr find( const_reference value )
5        {
6            node_ptr node = _root;
7            while( node ) {
8                if( node->data < value )
9                    node = node->left;
10               else if( node->data > value )
11                   node = node->right;
12               else
13                   break;
14           }
15           return node;
16       }
17

If the value we are looking for is less than the data in the node we are at, then go left; if it is greater, go right. Keep going until we hit a dead-end or we find what we are looking for. That is all that the find function is doing.

Now, we need the destructor coded.

Before we go adding data to the container, we need to code the destructor! It basically clears the entire tree, so why don't we also add a clear interface function just because it's easy? I will use a recursive algorithm for this one because the iterative way is kind of messy. Generally, I hate using recursive algorithms in destructors.

1        // Clear out the data in a subtree
2        void _clear( node_ptr subtree )
3        {
4            if( subtree ) {
5                _clear( subtree->left );
6                _clear( subtree->right );
7                delete subtree;
8            }
9        }
10
11       // ...
12
13
14   public:
15
16       /*
17        * Interface functions
18        */
19
20       // ...
21
22       // Destructor
23       ~rb_tree()
24       {
25           _clear( _root );
26       }
27
28
29       // Clear out the data in the tree
30       void clear()
31       {
32           _clear( _root );
33           _root = nullptr;
34       }
35

Finally, we get to the rb-tree code!

What we have so far is the code below. Next, we will start work on the rotation functions and a few other helper functions. After that, we can jump into insertion and then into deletion! Anyways, here is what we have so far:

What are the helper functions that we want? Well, we know that we will need to do tree rotations. And tree rotations are much easier if you have a link to the node (those green lines in the pictures). So, we need the ability to represent those lines, and we need rotation functions.

Lets start with the links, aka the green lines. The implementation is kind of confusing, so we use some functions to deal with that stuff, and all that we need to know is that they are those little green lines! Whenever we set the destination of a link, whatever node the link is coming from now has its little green line pointing to somewhere else.

1        // ...
2
3        /*
4         * Typedefs
5         */
6
7        // A link typedef
8        typedef node_ptr * link_type;
9
10
11   protected:
12
13
14       /*
15        * Helper functions
16        */
17
18       // ...
19
20       // Convert a node pointer to a link
21       // You must pass it something like node->left.
22       // Passing it just node or just left won't work.
23       link_type _make_link( node_ptr & node )
24       {
25           return & node;
26       }
27
28       // Get a node's parent's link to that node
29       link_type _get_parent_link( node_ptr node )
30       {
31           node_ptr parent = node->parent;
32           if( ! parent )
33               return _make_link( _root );
34           if( parent->left == node )
35               return _make_link( parent->left );
36           //if( parent->right == node )
37               return _make_link( parent->right );
38       }
39
40       // Get a link's destination
41       node_ptr _link_dest( link_type link )
42       {
43           return *link;
44       }
45
46       // Set a link's destination
47       void _link_set_dest( link_type link, node_ptr dest )
48       {
49           *link = dest;
50       }
51
52       // Get a link's origin
53       node_ptr _link_orig( link_type link )
54       {
55           return _link_dest(link) -> parent;
56       }
57

Now let's do the rotations. We will need clockwise rotations and counterclockwise rotations. Usually, they are called right and left rotations, respectfully. I call them clockwise and counterclockwise.

Let's say that we want to rotate the root node counterclockwise. We want to do it, but we also want the nodes to stay in the correct order. Watch. This is how you do it.

And that is how a counterclockwise rotation works! A clockwise rotation is exactly the same idea... just hold the picture up to a mirror. Here is the code for the rotations:

1        /*
2         * Helper functions
3         */
4
5        // ...
6
7        // Rotate about a node counterclockwise
8        void _rotate_counterclockwise( link_type link )
9        {
10           node_ptr node = _link_dest(link);
11           node_ptr right = node->right;
12           node_ptr rleft = right->left;
13
14           _link_set_dest( link, right );
15           right->parent = node->parent;
16
17           right->left = node;
18           node->parent = right;
19
20           node->right = rleft;
21           if( rleft )
22               rleft->parent = node;
23       }
24
25       // Rotate about a node clockwise
26       void _rotate_clockwise( link_type link )
27       {
28           node_ptr node = _link_dest( link );
29           node_ptr left = node->left;
30           node_ptr lright = left->right;
31
32           _link_set_dest( link, left );
33           left->parent = node->parent;
34
35           left->right = node;
36           node->parent = left;
37
38           node->left = lright;
39           if( lright )
40               lright->parent = node;
41       }
42

Now we move on to insertion.

The plan is to figure out where to insert the node, then to create a node and attach it, then to balance the tree. If the value already exists in the tree, we just don't insert it again.

To make things simpler, we'll have some of the complicated work put into separate functions. The code for the insert function is the following.

1        // Insert data into the tree
2        void insert( const_reference value )
3        {
4            // We need both the link and the parent
5            pair<link_type, node_ptr> where;
6            where = _get_insert_link( value );
7            if( ! where.first )
8                return;
9
10           // Create the node
11           node_ptr node = new rb_node;
12           node->data = value;
13           node->color = RED;
14           node->left = node->right = nullptr;
15           node->parent = where.second;
16
17           // Attach it to the tree
18           _link_set_dest( where.first, node );
19
20           // Balance
21           _insert_balance( node );
22       }
23

    The _get_insert_link function returns a pair (if you're unfamiliar with std::pair, this means that it returns two things) with the first value being the link and the second being the origin of the link (the future parent of the node we're inserting). If the value already exists, then the link it returns is not valid, which can be tested with !where.first. We will need to include the utility header file to use std::pair.

    The _link_set_dest function we have already covered. And the _insert_balance function just balances the tree after insertion. We pass the _insert_balance function the node we just created, since that's where we changed the tree and thus where we need to start balancing.

    We set the node that we just inserted to red. While this isn't the only option that we have, it makes it easier if we can indeed insert a red node. Red nodes don't affect the black height, so if _insert_balance doesn't detect two reds in a row after this, then we don't even have to balance the tree. If we insert a black node, then we would more likely have to balance the tree afterwards.

    The following is the code for the _get_insert_link function. We will cover the other undefined function, _insert_balance, in the next section. So, after this function is coded, we can move on to coding balancing.

1        /*
2         * Helper functions
3         */
4
5        // ...
6
7        // Figure out where to insert a value in the tree
8        // Returns a pair, where first is the link (nullptr if the
9        // value is already in the tree) and second is the origin
10       // of the link.
11       pair<link_type, node_ptr>
12       _get_insert_link( const_reference value )
13       {
14           link_type where = _make_link(_root);
15           node_ptr origin = nullptr;
16
17           while( _link_dest(where) ) {
18               origin = _link_dest(where);
19               if( value < origin->data )
20                   where = _make_link( origin->left );
21               else if( value > origin->data )
22                   where = _make_link( origin->right );
23               else {
24                   where = nullptr;
25                   break;
26               }
27           }
28
29           return make_pair( where, origin );
30       }
31

    The _get_insert_link function works just like the find function, except that, instead of keeping track of the current node as it works its way down, it keeps track of the link to the current node and that node's parent (aka the link's origin).

Easy balancing after insertion.

    Balancing after an insertion is a pain, so it may be a good time for a quick break before continuing. Ah, it's not near as bad as erasing, but it can get messy.

    We will start with the easiest cases: one, we just inserted a red node and its parent is black; and two, we just inserted into an empty tree.

    The picture on the left is if we insert a red node and the parent is black. Since we do follow the rules for red-black trees, we know that the parent of the red node was balanced before we inserted the node. Thus, the right child must be a null leaf or a red node. In any case, the total black height of that node was two, and each of its child subtrees had a black height of one.. After inserting the red node on the left, the total black height at the red node's parent is still two, and each of its child subtrees still have a black height of one. Therefore, inserting a red node with a black parent is a breeze! We need not balance.

    The picture on the right is if we insert a node at the root. The only rule that we are violating is that the root must be black. Simply change the color to black, and we are done!

    If neither of the two pictures above apply, then the red node that we just inserted has a red parent, and we need to take steps to fix the problem.

    The far left is the situation that we have. We know that the parent has no other children since it must have been balanced before we inserted its child node. To solve the problem of two reds in a row, we can either change the node we just inserted to black (middle) or the parent to black (right).

    I personally like the solution on the right. In either case, we are adding one to the black height and thus must go up the tree correcting the problem, but in the solution on the right, we can start balancing at the parent instead of at the node we just inserted. One step higher! It might make a difference in speed.

    We will save the complicated "go up the tree fixing the black height problem" for a separate function. For the easy cases and for preparing to go up the tree balancing, this is our _insert_balance function:

1        /*
2         * Helper functions
3         */
4
5        // ...
6
7        // Balance the tree after insertion
8        // This function only handles the easy cases. The harder
9        // cases are handed off to another function.
10       void _insert_balance( node_ptr node )
11       {
12           // We just inserted at the root?
13           if( ! node->parent ) {
14               node->color = BLACK;
15               return; // done
16           }
17
18           // We just inserted a red as a black's child?
19           if( _node_color(node->parent) == BLACK )
20               return; // done
21
22           // Otherwise... we have two reds in a row
23           node->parent->color = BLACK;
24           _insert_harder_balancing( node->parent );
25       }
26

Harder recursing up the tree balancing after insertion.

    There is no super simple way to solve this problem that I can think of, so we need to make it easier by taking it one step at a time. We need to consider every possibility that makes sense.

    We will first consider the possibilities when first calling the _insert_harder_balancing function. Also, get your gedit, notepad, or whatever you use handy. If we run into a place where we need to traverse on up the tree, we need to make a note of any new possibilities that we introduce.

    When first calling the function, the node we passed is black and its parent is black (node was red in _insert_balance before it was changed to black, so node's parent must be black). Let's look at this.

The red node with the yellow dot is the node that we just inserted. The blue numbers are the black heights at each node. The red node's parent is what we passed to our function (henceforth known as "node"). It used to have a black height of 1 since it used to be red, so its parent (henceforth known as "parent") used to have a black height of 2. If parent used to have a black height of 2 and is black, then node's sibling (henceforth, "sibling") has a black height of 1. The tree is unbalanced.

Since sibling has a black height of 1, then it is either red or a null leaf. This makes things much simpler! Let's look at these two possibilities.

Initial case 1: node is black, parent is black, sibling is red.

Since sibling has a black height of 1, if it is red, then it can only have null leaves as children. Now, how can we do color changes or rotations to solve the black imbalance at parent?

What if we set parent to red and sibling to black? That balances the tree (each side has a black height of 2), and the total black height is 2. As long as parent's parent is not red (it is either black or nonexistant (parent is root)), we're done! But if parent's parent is red, then we have a problem.

Well, the solution is to either set parent (um, the second red node from the left) to black or to set parent's parent (the top node) to black. In either case, we'll have to traverse up the tree balancing, but if we set parent's parent to black, then we can jump up the tree further before we balance.

Let's look at what the tree looks like after we jump on up the tree. node is now parent->parent, parent is its parent, and sibling is the new node's parent. It sounds confusing, but we actually don't have to worry about those details. Just call _insert_harder_balancing with parent->parent, and all those variables are adjusted accordingly exactly as they were when called initially. Let's have a picture of when we step upwards.

Since the old parent->parent (now "node") was red, then the new "parent" must be black. That makes the new "sibling" able to be pretty much anything! All that we know for certain is that it must have a height of at least 2 (since that's the minimum after calling from the initial call of _insert_harder_balancing), and so it must exist. But its children may be red, black, or null leaves (considered black by the _node_color function). That's five extra cases right there! We must make a note of these new possibilities.

Hopefully, we will inadvertently solve each of the cases listed above. If not, then I guess we'll just have to deal with them later. Let's continue with the initial cases for now.

Initial case 2: node is black, parent is black, sibling is null leaf.

    Oh, thank god! I immediately see a way to not only balance this tree but to also get the total black height back to what it was before insertion. We need not traverse up the tree and consider other cases.

    Reminder: The red node with the yellow dot is what we just inserted. node is its parent, and parent is node's parent.

    To solve this, set parent to red, then rotate clockwise about parent. The picture below is the outcome of these operations.

There is one minor error in the above solution. I will leave it as an exercise to figure out what it is. If you can't figure it out, don't worry. I will correct the error at the end of the insertion section.

We are done with the easy insertion cases.

The code below is what we have so far for the _insert_harder_balancing function. The next step is to address those five extra cases we introduced, but first let's just look at the code we have for the initial cases.

1        /*
2         * Helper functions
3         */
4
5        // ...
6
7        // Balance the tree after insertion
8        // This function handles the harder cases.
9        void _insert_harder_balancing( node_ptr node )
10       {
11           node_ptr parent = node->parent;
12           node_ptr sibling = _node_sibling( node );
13
14           // Initial case 1: node black, par black, sib red
15           if( _node_color(sibling) == RED ) {
16               sibling->color = BLACK;
17               parent->color = RED;
18
19               // If parent's parent is red
20               if( _node_color(parent->parent) == RED ) {
21                   parent->parent->color = BLACK;
22                   _insert_harder_balancing( parent->parent );
23               }
24           }
25
26           // Initial case 1: node black, par black, sib null
27           else {
28               parent->color = RED;
29               _rotate_clockwise( _get_parent_link(parent) );
30           }
31       }
32

We also introduced the _node_sibling function. Nobody wants to see messy "get the sibling" code in an already complex function, so that code has its own function. The code for it is below.

1        /*
2         * Helper functions
3         */
4
5        // ...
6
7        // Get a node's sibling
8        node_ptr _node_sibling( node_ptr node )
9        {
10           node_ptr par = node->parent;
11           node_ptr sib = par->left;
12           if( sib == node )
13               sib = par->right;
14           return sib;
15       }
16

And it is time for those five more insertion cases.

Currently, our code will balance the five other cases without us having to do anything else. Remember that the null leaf nodes in case 2 can also be considered black. Let's look at what happens in each of the five extra cases. I have color-coded node, parent, and sibling so that you can follow what happens.

    One question that you may ask is, "what if node's right child is red?". Well, looking at the code where we eventually get to this case, node was red before it was changed to black and the function was called again for these cases. If node was red, then its children must be black. No problems!

    By the way, my punctuating after quotation marks is technically a grammar mistake, but I have no intention of changing it. So, for the quest for the grammatical error, keep, looking. :)

We are done with insertion!

    It is time to view our _insert_harder_balancing function. Look below to find the code.

    One thing to note, is that all of the examples above assume that node is on the left of its parent, and all of the drafts of _insert_harder_balancing make this assumption, too. If it is, instead, on its parent's right, then everything needs to be viewed in a mirror. In other words, where we rotate clockwise, we need to rotate counterclockwise.

1        // Balance the tree after insertion
2        // This function handles the harder cases.
3        void _insert_harder_balancing( node_ptr node )
4        {
5            node_ptr parent = node->parent;
6            node_ptr sibling = _node_sibling( node );
7
8            // Initial case 1: node black, par black, sib red
9            if( _node_color(sibling) == RED ) {
10               sibling->color = BLACK;
11               parent->color = RED;
12
13               // If parent's parent is red
14               if( _node_color(parent->parent) == RED ) {
15                   parent->parent->color = BLACK;
16                   _insert_harder_balancing( parent->parent );
17               }
18           }
19
20           // Initial case 2: node black, par black, sib black
21           else {
22               parent->color = RED;
23               if( node == parent->left ) {
24                   _rotate_clockwise(
25                       _get_parent_link(parent) );
26               }
27               else {
28                   _rotate_counterclockwise(
29                       _get_parent_link(parent) );
30               }
31           }
32       }
33

    And now, before we move on to erasing, let's run our program to make sure that everything works as planned... I'm compiling it... I'm running it... error! The root is red?

    Why is the root red? Don't we set it to black if we just inserted at the root? Yes, we do. Looking further into it, in the _insert_harder_balancing function, we see that our case 1 handler might make the root red. For the cases above, we did not consider the rule about the root having to be black (to simplify things).

    There are two solutions that we can choose from: one, add an extra "if" for case 1 that checks to see if parent is root before setting its color to red; or two: set the root to black after we return back to _insert_balance. The first solution will execute that "if" an unknown number of times, but the second solution will only execute the assignment once. Let's go with the second solution.

    Let's try this again. Compiling... running... arg! Remember when I said that there was a problem with case 2? What if node's right child is red? We get two reds in a row after the rotation! The solution is to swap the colors of node and its right child, then rotate counterclockwise, if its right child is red. And no, this doesn't cause any more red violations after the rotation since node's right child's children must be black. An opposite method is used if node is on the right side of its parent.

  One more try. Compiling... running... success! The code we have so far is below. It works wonderfully!

Erasing

To erase from a red-black tree, you first erase just like you do for a regular binary search tree, then you balance the tree and make sure it follows the rules for a red-black tree. If you don't remember or know how to erase from a regular binary search tree, no worries! I will go into more detail on that now. Consider the binary search tree below.

When you erase a node, there are four possibilities: 1) the node is the only node in the tree; 2) the node has no children; 3) the node has one child; 4) the node has two children.

In the first case, where you erase the only node in the tree, just erase it! In the second case, it's the same thing. You erase a node with no children, and everything is still dandy (apart from balancing afterwards for the second case).

In the third case, things get a little tricky. In the tree above, what happens if you just delete 8? Well, the root of the tree no longer has a path to 5, 6, or 7! This is, however, easy to fix. Just move the 6 up to where 8 is after you delete it. Oh, and notice that the values will still be in alphabetical order (left to right), too.

In the fourth case, what do you do? What if you want to delete 2? "Oh, just move the 3 up!" Yea, that works for that instance. Now what about 4? You can't just move the 8 up to take its place. Go ahead, try it. Neither can you move the 2 up to take its place. How can you remove the 4 from the tree? And here, it gets slightly tricky, but there is a solution!

If a node that you want to remove from the tree has two children, swap its value with either the rightmost node of its left subtree or the leftmost node of its right subtree. Either of those two will have at most one child. Then, use the case for no children or one child to remove the replacement node. Here, look (I'll use the leftmost node of the right subtree):

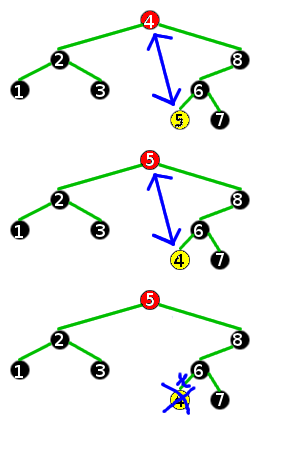

Notice that the values are still in alphabetical order after the 4 is swapped with the 5 and the 4 is removed.

We will use the solutions above to code a _replace_and_remove_node function that will help us out in erasing. What it will do is make the tree forget that the node ever existed. If it has one child, the node will be replaced by its child. If it has two children, the leftmost node of its right subtree will replace it. If it has no children, then it will be simply forgotten.

Since we are wanting to balance the tree after the modifications, we will make _replace_and_remove_node return the actual removed node (remember, we don't actually remove the node we wanted to remove if it has two children). What returning this will do is tell us where the tree was modified, and we will use this information to figure out where to start balancing. Since we will not delete the node yet, it still has its outgoing pointer to its parent (though its parent has forgotten it).

The code for the _replace_and_remove_node function is below. After this is done, we can more easily code the main erase function.

1        /*
2         * Helper functions
3         */
4
5        // ...
6
7        // Return the leftmost node of a subtree
8        node_ptr _node_leftmost( node_ptr node )
9        {
10           while( node->left )
11               node = node->left;
12           return node;
13       }
14
15       // ...
16
17       // [Possibly] replace and remove a node
18       // Returns the actual node removed from the tree
19       node_ptr _replace_and_remove_node( node_ptr node )
20       {
21            node_ptr rep = nullptr;
22
23            if( node->left && node->right ) {
24                rep = _node_leftmost( node->right );
25                std::swap( rep->data, node->data );
26                node = rep;
27                rep = nullptr;
28            }
29
30           if( node->left )
31               rep = node->left;
32           else if( node->right )
33               rep = node->right;
34
35           _link_set_dest( _get_parent_link(node), rep );
36           if( rep )
37               rep->parent = node->parent;
38
39           return node;
40       }
41

Notice we also added a _node_leftmost helper function. And now the part of erasing that remove a node from the tree is finished! Now we can move on to erasing.

To erase a value, we need to find the node that contains the value. After we find that node, we remove it from the tree, balance the tree, then delete the node. Here is the code:

1        // Erase data from the tree
2        void erase( const_reference value )
3        {
4            node_ptr node = find( value );
5            if( ! node )
6                return;
7
8            node = _replace_and_remove_node( node );
9
10           _erase_balance( node );
11
12           delete node;
13       }
14

We passed the removed not to the balance function. We might want to know what color the node we removed was. Remember that the node still exists and still has a link to its parent (though its parent no longer has a link to it). And now we can begin the complicated task of balancing after a deletion.

Easy Balancing for Erasing

First, we will start with the easy cases, as we did for insertion. If we can not solve the problem easily, we will call another function for the more complicated cases.

Remember that we must make sure that the tree follows the red-black tree rules. To make things simpler, we will only be concerned with the rules that two reds cannot be in a row and every path from a node to a decendant leaf must contain the same number of black nodes.

When we erase a node, it has at most one child (as is ensured after the call to _replace_and_remove_node). Also, it can be either red or black. Consider the picture below.

Continuing with our current color scheme, the blue is the black height at a node, the green lines are the links between the nodes, and the circles are the nodes (red and black). One added symbol is the yellow X which covers the node that we have removed from the tree.

The bottom-right situation is impossible because the tree is unbalanced before the removal of the red node. The other three cases, though, are possible. In the top-left case, we have no choice but to consider even more nodes, and we will do this in a different function. The case on the right can be solved right away by making the red node black. The bottom-left case has no effect on the black height of the tree, so we need not balance in that case.

See? In the second and third situation, the black height is the same as it was before, so we are okay. It is only in the first situation that we have a problem.

On more thing to consider, however, is what to do if we just removed the root. The first and second cases above could also represent that, so we will have the balancing down. In the first case, why pass the work on to another function that handles complicated stuff, though, when we can just return without balancing if we just deleted the root? We will do that.

1        // Balance the tree after erasing
2        // Node is the node that was removed
3        void _erase_balance( node_ptr node )
4        {
5            // If we just deleted a red node, we're done
6            if( _node_color(node) == RED )
7                return;
8
9            // If we deleted a black node, but it has a red child
10           if( node->left || node->right ) {
11               if( node->left )
12                   node->left->color = BLACK;
13               else
14                   node->right->color = BLACK;
15               return;
16           }
17
18           // If we just deleted the root, we're done
19           if( ! node->parent )
20               return;
21
22           // Otherwise, we have a black node with no children
23           _erase_harder_balancing( ??? );
24       }
25

We took a shortcut for the black node with a red child. If we just removed a black node, we must have a red child if there is any child. Also, we used _node_color to get the node's color. As explained way up above, _node_color works even for those imaginary leaf nodes, but we use it for everything just to stay consistent.

I put question marks after the _erase_harder_balancing function, which handles the first case in the picture above. Where should we start considering the harder cases?

Well, we know that the node is black and has no children, so do we need to pass the node? Not really. But we do need to know which side of the subtree now has one less black node, so we do need to pass this information somehow. Well, we can't pass node because its parent no longer knows it. Let's pass its sibling. This way, we know which side is heavier, and we can start balancing at the parent. But what if the sibling doesn't exist? It must, because if it didn't exist, the black height of the side we removed from was 2 and its sibling's side was 1, which would have been unbalanced. We can and shall pass the removed node's sibling.

We can't use the _node_sibling function since the parent no longer recognizes the removed node, but we know that the removed node has no child and was replaced with nullptr, and we can use that to figure out the sibling (the sibling is the only side of parent that exists).

Now let's consider more difficult initial cases for erasing.

First, we will consider the initial cases. What does the tree look like right after we remove a node when we have gone to _erase_harder_balancing?

By looking at just the colors of the sibling and the parent, I cannot find a solution. All of the solutions I can think of depend on either the color of sibling's left child or the colors of both of its children.

We need to expand these cases to cover sibling's children. Since we are considering every possible combination of the colors of the parent, the sibling, and the children of sibling, we may as well just throw out the idea of only considering the simpler initial cases. Now we have the possibilities listed below.

Since null nodes are considered black, the above works also for the initial cases where sibling's children may be null. Also, we will still assume that node is black, but if we have traversed up the tree, it will exist (so I've left off the yellow X). We just have to make sure that node is black when we traverse up the tree.

One last thing to note about the picture is that I used "h" as a variable to hold the height of the parent. The other nodes have a height relative to this. This is because the height may be any number as we traverse up the tree.

Now we find solutions for the cases where erasing.

Our goal is to change colors and/or do rotations so that the total black height of the subtree is the same as it was before and the subtree is balanced. Sometimes, we can't get the height to be the same as it was before. In such a case, we need to traverse on up the tree.

One more thing to consider is whether we have made the root of the subtree red while its parent's color is red. We may have a problem if we have. We will need to fix that problem and then traverse on up the tree.

Now let us begin the tedious task of finding solutions to each of the nine cases. I hope you are fully rested and have a while to dedicate to this! It might get hard. Oh, and I'll skip the transitions from case to solution and leave those as practice for you. It will be good to work these out so that you understand the process better.

I will use P to represent parent, S to represent sibling, Sl to represent sibling's left child, and Sr to represent sibling's right child. I'll do this to make the typing in the case titles less. I will likely use the full names in the instructions, though.

Case 1: P is black, S is black, Sl is black, Sr is black

In this case, we can simply set the sibling's color to red. That fixes the black height problem. Unfortunately, the total height of the tree is now one less than it was before.

We will need to traverse on up the tree balancing. Since our _erase_harder_balancing function takes the sibling of the node that is on the smaller side of the tree as a parameter, we pass parent's sibling to _erase_harder_balancing to traverse upwards.

Case 2: P is black, S is black, Sl is red, Sr is black

In this case, set sibling's left child to black, rotate clockwise about sibling, then rotate counterclockwise about parent. Check it out!

I color-coded the nodes so that you could follow them. I did not show each step — that is an exercise for you! And we are done for this case.

Case 3: P is black, S is black, Sl is black, Sr is red

In this case, simply set the sibling's right child to black and then rotate counterclockwise about parent. Then, we are done!

Case 4: P is black, S is black, Sl is red, Sr is red

The solution here is to do exactly as in case 2. Set sibling's left child to black, rotate clockwise about sibling, then rotate counterclockwise about parent. Then, we are done.

Case 5: P is black, S is red, Sl is black, Sr is black

While I am thinking about it, let me point out that setting node to red would solve the problem completely if we just consider the part of the subtree shown in case 5. The reason we cannot do this is that we do not know that node's children are not red. We just came from there, too, so we do not want to backtrack to check node's children.

Now, back to case 5... I cannot find a solution from what is shown. The closest that I can come is the picture shown below, but the left side has an imbalance afterwards. I set parent to red and sibling to black, then I rotate counterclockwise about parent.

Isn't it ironic how we must traverse back down the tree right after I said not to? We must traverse back down the tree and pass the green-centered node to our _erase_harder_balancing function (remember, we pass the sibling of the node that has lost one black height).

We don't want to parse through cases 1, 2, 3, 4, and 6 when all we need to do is parse through cases 6, 7, 8, and 9 for this. Why not put 6, 7, 8, and 9 in a separate function? We will do that!

Case 6: P is red, S is black, Sl is black, Sr is black

In this case, we can simply rotate counterclockwise about parent. I won't color-code the nodes since it's so simple. Oh, and we're done afterwards!

Case 7: P is red, S is black, Sl is red, Sr is black

In this case, set parent to black, rotate clockwise at sibling, then rotate counterclockwise at parent. Then, we are done.

Case 8: P is red, S is black, Sl is black, Sr is red

The solution here is the same as in case 6. Just rotate counterclockwise about parent! Since it's so simple, no color-coding. And we are done afterwards since the total black height before is the total black height afterwards.

Case 9: P is red, S is black, Sl is red, Sr is red

Set parent to black, rotate clockwise about sibling, then rotate counterclockwise about parent. Total height is what it was before, so we need not traverse on up the tree. We are done.

Case one more: we are at the root

If we have just balanced the tree and the new subtree's root is the root of the entire tree, then we cannot traverse upwards. Therefore, we need to check to make sure that parent->parent exists every time we want to traverse upwards. Problem solved!

Now that the cases and solutions are discovered, code it!

All of the cases that we considered above assume that the node (which is the side that is low one black height) is on the left of its parent. If it is on the right, then just hold the solution up to a mirror.

We could use extra if statements to determine which side of its parent that node is on, but that makes the code messier. Instead, I will use a little trick that turns the rotations around and swaps the variables we use for the sibling's children.

1            // Use default rotations and sib->left|right
2            typedef void (rb_tree::*rot_func)( link_type );
3            rot_func rot_clock = & rb_tree::_rotate_clockwise;
4            rot_func rot_counter= & rb_tree::_rotate_counterclockwise;
5            node_ptr sib_left = sibling->left;
6            node_ptr sib_right = sibling->right;
7
8            // But if sibling is on the left, turn them around.
9            if( sibling == sibling->parent->left ) {
10               swap( rot_clock, rot_counter );
11               swap( sib_left, sib_right );
12           }
13

Now we just look at each case and its solution above and code it as we see it. Don't worry about optimization. We just want to make a tree that works! Later, we can optimize (not covered in this tutorial). The code below is the _erase_harder_balancing function.

1        // Harder balancing stuff
2        void _erase_harder_balancing( node_ptr sibling )
3        {
4            // Use default rotations and sib->left|right
5            typedef void (rb_tree::*rot_func)( link_type );
6            rot_func rot_clock = & rb_tree::_rotate_clockwise;
7            rot_func rot_counter= & rb_tree::_rotate_counterclockwise;
8            node_ptr sib_left = sibling->left;
9            node_ptr sib_right = sibling->right;
10
11           // But if sibling is on the left, turn them around.
12           if( sibling == sibling->parent->left ) {
13               swap( rot_clock, rot_counter );
14               swap( sib_left, sib_right );
15           }
16
17           // One more variable
18           node_ptr parent = sibling->parent;
19
20           // Case 1-5: parent is black
21           if( _node_color(parent) == BLACK ) {
22
23               // Case 1-4: sibling is black
24               if( _node_color(sibling) == BLACK ) {
25
26                   // Case 1: sibling's children are both black
27                   if( _node_color(sib_left) == BLACK
28                       && _node_color(sib_right) == BLACK ) {
29                       sibling->color = RED;
30                       if( parent->parent ) {
31                           _erase_harder_balancing(
32                               _node_sibling(parent) );
33                       }
34                   }
35
36                   // Case 2: sib_left is red, sib_right is black
37                   else if( _node_color(sib_left) == RED
38                       && _node_color(sib_right) == BLACK ) {
39                       sib_left->color = BLACK;
40                       (this->*rot_clock)(
41                           _get_parent_link(sibling) );
42                       (this->*rot_counter)(
43                           _get_parent_link(parent) );
44                   }
45
46                   // Case 3: sib_left is black, sib_right is red
47                   else if( _node_color(sib_left) == BLACK
48                       && _node_color(sib_right) == RED ) {
49                       sib_right->color = BLACK;
50                       (this->*rot_counter)(
51                           _get_parent_link(parent) );
52                   }
53
54                   // Case 4: sibling's children are both red
55                   else {
56                       sib_left->color = BLACK;
57                       (this->*rot_clock)(
58                           _get_parent_link(sibling) );
59                       (this->*rot_counter)(
60                           _get_parent_link(parent) );
61                   }
62
63               }
64
65               // Case 5: sibling is red
66               else {
67                   parent->color = RED;
68                   sibling->color = BLACK;
69                   (this->*rot_counter)( _get_parent_link(parent) );
70                   _erase_harder_balancing_red_parent( sib_left );
71               }
72
73           }
74
75           // Case 6-9: parent is red
76           else {
77               _erase_harder_balancing_red_parent( sibling );
78           }
79       }
80

And the following is the code for _erase_harder_balancing_red_parent. Remember, we separated it out because of case 5. Okay, so we have optimized a little already, haha...

1        // Harder balancing stuff
2        // Handles cases where parent is red
3        void _erase_harder_balancing_red_parent( node_ptr sibling )
4        {
5            // Use default rotations and sib->left|right
6            typedef void (rb_tree::*rot_func)( link_type );
7            rot_func rot_clock = & rb_tree::_rotate_clockwise;
8            rot_func rot_counter= & rb_tree::_rotate_counterclockwise;
9            node_ptr sib_left = sibling->left;
10           node_ptr sib_right = sibling->right;
11
12           // But if sibling is on the left, turn them around.
13           if( sibling == sibling->parent->left ) {
14               swap( rot_clock, rot_counter );
15               swap( sib_left, sib_right );
16           }
17
18           // One more variable
19           node_ptr parent = sibling->parent;
20
21           // Parent is red, by the way
22           // Sibling must be black.
23
24           // Case 6: both of sibling's children are black
25           if( _node_color(sib_left) == BLACK
26               && _node_color(sib_right) == BLACK ) {
27               (this->*rot_counter)( _get_parent_link(parent) );
28           }
29
30           // Case 7: sib_left is red, sib_right is black
31           else if( _node_color(sib_left) == RED
32               && _node_color(sib_right) == BLACK ) {
33               parent->color = BLACK;
34               (this->*rot_clock)( _get_parent_link(sibling) );
35               (this->*rot_counter)( _get_parent_link(parent) );
36           }
37
38           // Case 8: sib_left is black, sib_right is red
39           else if( _node_color(sib_left) == BLACK
40               && _node_color(sib_right) == RED ) {
41               (this->*rot_counter)( _get_parent_link(parent) );
42           }
43
44           // Case 9: both of sibling's children are red
45           else {
46               parent->color = BLACK;
47               (this->*rot_clock)( _get_parent_link(sibling) );
48               (this->*rot_counter)( _get_parent_link(parent) );
49           }
50       }
51

We are finished!

Test the code. Compiling... running... success! And now, hopefully, you have a better grasp of red-black trees. At the very least, you now have some red-black tree code! Feel free to use it however you see fit. Oh, and you don't even have to give me credit (though a +1 would be nice). ;) Oh, and the code for the entire thing is below.

1    /*
2     * red-black tree example
3     * by Nathan Belue
4     * on April 19, 2011
5     *
6     * Feel free to do whatever you want with this code. If you
7     * choose to edit it, though, please either make a note of the
8     * edit or remove me as an author.
9     *
10    * Also, see my blog post on red-black trees at <http://nathanbelue.blogspot.com/2012/04/red-black-trees.html>
11    */
12
13
14   /*
15    * Included files
16    */
17
18   #include <cstdlib>
19   #include <iostream>
20   #include <utility>
21
22   using namespace std;
23
24
25
26   /*
27    * Some constants and typedefs
28    */
29
30   // The type of data to store
31   typedef int value_type;
32
33   // A constant reference to the type of data to store
34   typedef const value_type & const_reference;
35
36   // I really LOVE C++11's nullptr, but TR1 doesn't support it
37   #if __cplusplus < 201103L
38       #define nullptr 0
39       // ... so now it does
40   #endif
41
42
43
44   /*
45    * For representing colors
46    */
47
48   enum color_type
49   {
50       RED,
51       BLACK
52   };
53
54
55
56   /*
57    * Red-black tree node
58    */
59
60
61   // Our node struct
62   struct rb_node
63   {
64       value_type data;
65       color_type color;
66       rb_node * parent;
67       rb_node * left;
68       rb_node * right;
69   };
70
71   // I don't like typing out pointer types
72   typedef rb_node * node_ptr;
73
74
75
76   /*
77    * Red-black tree class
78    */
79
80   class rb_tree
81   {
82       /*
83        * Data
84        */
85
86       // The root of the tree
87       node_ptr _root;
88
89
90       /*
91        * Typedefs
92        */
93
94       // A link typedef
95       typedef node_ptr * link_type;
96
97
98   protected:
99
100
101      /*
102       * Helper functions
103       */
104
105
106      // A handy function for getting a node's color
107      // It even works for imaginary leaf nodes!
108      color_type _node_color( node_ptr node )
109      {
110          if( node )
111              return node->color;
112          return BLACK;
113      }
114
115      // Get a node's sibling
116      node_ptr _node_sibling( node_ptr node )
117      {
118          node_ptr par = node->parent;
119          node_ptr sib = par->left;
120          if( sib == node )
121              sib = par->right;
122          return sib;
123      }
124
125      // Return the leftmost node of a subtree
126      node_ptr _node_leftmost( node_ptr node )
127      {
128          while( node->left )
129              node = node->left;
130          return node;
131      }
132
133
134      // Convert a node pointer to a link
135      // You must pass it something like node->left.
136      // Passing it just node or just left won't work.
137      link_type _make_link( node_ptr & node )
138      {
139          return & node;
140      }
141
142      // Get a node's parent's link to that node
143      link_type _get_parent_link( node_ptr node )
144      {
145          node_ptr parent = node->parent;
146          if( ! parent )
147              return _make_link( _root );
148          if( parent->left == node )
149              return _make_link( parent->left );
150          //if( parent->right == node )
151              return _make_link( parent->right );
152      }
153
154      // Get a link's destination
155      node_ptr _link_dest( link_type link )
156      {
157          return *link;
158      }
159
160      // Set a link's destination
161      void _link_set_dest( link_type link, node_ptr dest )
162      {
163          *link = dest;
164      }
165
166      // Get a link's origin
167      node_ptr _link_orig( link_type link )
168      {
169          return _link_dest(link) -> parent;
170      }
171
172
173      // Clear out the data in a subtree
174      void _clear( node_ptr subtree )
175      {
176          if( subtree ) {
177              _clear( subtree->left );
178              _clear( subtree->right );
179              delete subtree;
180          }
181      }
182
183
184      // Rotate about a node counterclockwise
185      void _rotate_counterclockwise( link_type link )
186      {
187          node_ptr node = _link_dest(link);
188          node_ptr right = node->right;
189          node_ptr rleft = right->left;
190
191          _link_set_dest( link, right );
192          right->parent = node->parent;
193
194          right->left = node;
195          node->parent = right;
196
197          node->right = rleft;
198          if( rleft )
199              rleft->parent = node;
200      }
201
202      // Rotate about a node clockwise
203      void _rotate_clockwise( link_type link )
204      {
205          node_ptr node = _link_dest( link );
206          node_ptr left = node->left;
207          node_ptr lright = left->right;
208
209          _link_set_dest( link, left );
210          left->parent = node->parent;
211
212          left->right = node;
213          node->parent = left;
214
215          node->left = lright;
216          if( lright )
217              lright->parent = node;
218      }
219
220
221      // Figure out where to insert a value in the tree
222      // Returns a pair, where first is the link (nullptr if the
223      // value is already in the tree) and second is the origin
224      // of the link.
225      pair<link_type, node_ptr>
226      _get_insert_link( const_reference value )
227      {
228          link_type where = _make_link(_root);
229          node_ptr origin = nullptr;
230
231          while( _link_dest(where) ) {
232              origin = _link_dest(where);
233              if( value < origin->data )
234                  where = _make_link( origin->left );
235              else if( value > origin->data )
236                  where = _make_link( origin->right );
237              else {
238                  where = nullptr;
239                  break;
240              }
241          }
242
243          return make_pair( where, origin );
244      }
245
246
247      // Balance the tree after insertion
248      // This function handles the harder cases.
249      void _insert_harder_balancing( node_ptr node )
250      {
251          node_ptr parent = node->parent;
252          node_ptr sibling = _node_sibling( node );
253
254          // Initial case 1: node black, par black, sib red
255          if( _node_color(sibling) == RED ) {
256              sibling->color = BLACK;
257              parent->color = RED;
258
259              // If parent's parent is red
260              if( _node_color(parent->parent) == RED ) {
261                  parent->parent->color = BLACK;
262                  _insert_harder_balancing( parent->parent );
263              }
264          }
265
266          // Initial case 2: node black, par black, sib black
267          else {
268              parent->color = RED;
269              if( node == parent->left ) {
270                  if( _node_color(node->right) == RED ) {
271                      node->color = RED;
272                      node->right->color = BLACK;
273                      _rotate_counterclockwise(
274                          _make_link(parent->left) );
275                  }
276                  _rotate_clockwise(
277                      _get_parent_link(parent) );
278              }
279              else {
280                  if( _node_color(node->left) == RED ) {
281                      node->color = RED;
282                      node->left->color = BLACK;
283                      _rotate_clockwise(
284                          _make_link(parent->right) );
285                  }
286                  _rotate_counterclockwise(
287                      _get_parent_link(parent) );
288              }
289          }
290      }
291
292      // Balance the tree after insertion
293      // This function only handles the easy cases. The harder
294      // cases are handed off to another function.
295      void _insert_balance( node_ptr node )
296      {
297          // We just inserted at the root?
298          if( ! node->parent ) {
299              node->color = BLACK;
300              return; // done
301          }
302
303          // We just inserted a red as a black's child?
304          if( _node_color(node->parent) == BLACK )
305              return; // done
306
307          // Otherwise... we have two reds in a row
308          node->parent->color = BLACK;
309          _insert_harder_balancing( node->parent );
310          _root->color = BLACK;
311      }
312
313
314      // [Possibly] replace and remove a node
315      // Returns the actual node removed from the tree
316      node_ptr _replace_and_remove_node( node_ptr node )
317      {
318          node_ptr rep = nullptr;
319
320          if( node->left && node->right ) {
321              rep = _node_leftmost( node->right );
322              std::swap( rep->data, node->data );
323              node = rep;
324              rep = nullptr;
325          }
326
327          if( node->left )
328              rep = node->left;
329          else if( node->right )
330              rep = node->right;
331
332          _link_set_dest( _get_parent_link(node), rep );
333          if( rep )
334              rep->parent = node->parent;
335
336          return node;
337      }
338
339      // Harder balancing stuff
340      // Handles cases where parent is red
341      void _erase_harder_balancing_red_parent( node_ptr sibling )
342      {
343          // Use default rotations and sib->left|right
344          typedef void (rb_tree::*rot_func)( link_type );
345          rot_func rot_clock = & rb_tree::_rotate_clockwise;
346          rot_func rot_counter= & rb_tree::_rotate_counterclockwise;
347          node_ptr sib_left = sibling->left;
348          node_ptr sib_right = sibling->right;
349
350          // But if sibling is on the left, turn them around.
351          if( sibling == sibling->parent->left ) {
352              swap( rot_clock, rot_counter );
353              swap( sib_left, sib_right );
354          }
355
356          // One more variable
357          node_ptr parent = sibling->parent;
358
359          // Parent is red, by the way
360          // Sibling must be black.
361
362          // Case 6: both of sibling's children are black
363          if( _node_color(sib_left) == BLACK
364              && _node_color(sib_right) == BLACK ) {
365              (this->*rot_counter)( _get_parent_link(parent) );
366          }
367
368          // Case 7: sib_left is red, sib_right is black
369          else if( _node_color(sib_left) == RED
370              && _node_color(sib_right) == BLACK ) {
371              parent->color = BLACK;
372              (this->*rot_clock)( _get_parent_link(sibling) );
373              (this->*rot_counter)( _get_parent_link(parent) );
374          }
375
376          // Case 8: sib_left is black, sib_right is red
377          else if( _node_color(sib_left) == BLACK
378              && _node_color(sib_right) == RED ) {
379              (this->*rot_counter)( _get_parent_link(parent) );
380          }
381
382          // Case 9: both of sibling's children are red
383          else {
384              parent->color = BLACK;
385              (this->*rot_clock)( _get_parent_link(sibling) );
386              (this->*rot_counter)( _get_parent_link(parent) );
387          }
388      }
389
390      // Harder balancing stuff
391      void _erase_harder_balancing( node_ptr sibling )
392      {
393          // Use default rotations and sib->left|right
394          typedef void (rb_tree::*rot_func)( link_type );
395          rot_func rot_clock = & rb_tree::_rotate_clockwise;
396          rot_func rot_counter= & rb_tree::_rotate_counterclockwise;
397          node_ptr sib_left = sibling->left;
398          node_ptr sib_right = sibling->right;
399
400          // But if sibling is on the left, turn them around.
401          if( sibling == sibling->parent->left ) {
402              swap( rot_clock, rot_counter );
403              swap( sib_left, sib_right );
404          }
405
406          // One more variable
407          node_ptr parent = sibling->parent;
408
409          // Case 1-5: parent is black
410          if( _node_color(parent) == BLACK ) {
411
412              // Case 1-4: sibling is black
413              if( _node_color(sibling) == BLACK ) {
414
415                  // Case 1: sibling's children are both black
416                  if( _node_color(sib_left) == BLACK
417                      && _node_color(sib_right) == BLACK ) {
418                      sibling->color = RED;
419                      if( parent->parent ) {
420                          _erase_harder_balancing(
421                              _node_sibling(parent) );
422                      }
423                  }
424
425                  // Case 2: sib_left is red, sib_right is black
426                  else if( _node_color(sib_left) == RED
427                      && _node_color(sib_right) == BLACK ) {
428                      sib_left->color = BLACK;
429                      (this->*rot_clock)(
430                          _get_parent_link(sibling) );
431                      (this->*rot_counter)(
432                          _get_parent_link(parent) );
433                  }
434
435                  // Case 3: sib_left is black, sib_right is red
436                  else if( _node_color(sib_left) == BLACK
437                      && _node_color(sib_right) == RED ) {
438                      sib_right->color = BLACK;
439                      (this->*rot_counter)(
440                          _get_parent_link(parent) );
441                  }
442
443                  // Case 4: sibling's children are both red
444                  else {
445                      sib_left->color = BLACK;
446                      (this->*rot_clock)(
447                          _get_parent_link(sibling) );
448                      (this->*rot_counter)(
449                          _get_parent_link(parent) );
450                  }
451
452              }
453
454              // Case 5: sibling is red
455              else {
456                  parent->color = RED;
457                  sibling->color = BLACK;
458                  (this->*rot_counter)( _get_parent_link(parent) );
459                  _erase_harder_balancing_red_parent( sib_left );
460              }
461
462          }
463
464          // Case 6-9: parent is red
465          else {
466              _erase_harder_balancing_red_parent( sibling );
467          }
468      }
469
470      // Balance the tree after erasing
471      // Node is the node that was removed
472      void _erase_balance( node_ptr node )
473      {
474          // If we just deleted a red node, we're done
475          if( _node_color(node) == RED )
476              return;
477
478          // If we deleted a black node, but it has a red child
479          if( node->left || node->right ) {
480              if( node->left )
481                  node->left->color = BLACK;
482              else
483                  node->right->color = BLACK;
484              return;
485          }
486
487          // If we just deleted the root, we're done
488          if( ! node->parent )
489              return;
490
491          // Otherwise, we have a black node with no children
492          node_ptr sib = node->parent->left;
493          if( ! sib )
494              sib = node->parent->right;
495          _erase_harder_balancing( sib );
496      }
497
498
499      // Check helper function
500      // Returns the black height of a subtree
501      int _check( node_ptr subtree )
502      {
503          // Imaginary leaf? black height is 1
504          if( ! subtree )
505              return 1;
506
507          node_ptr left = subtree->left;
508          node_ptr right = subtree->right;
509
510          // Black height of both sides must be the same
511          int left_height = _check( left );
512          int right_height = _check( right );
513          if( left_height != right_height )
514              throw "black imbalance!";
515
516          // No two reds in a row
517          if( _node_color(subtree) == RED ) {
518              if( _node_color(left) == RED
519                  || _node_color(right) == RED )
520                  throw "two reds in a row!";
521          }
522
523          // We're black, the height is [left|right]_height + 1
524          else
525              ++ left_height;
526
527          // Make sure that the children's parents are correct
528          if( left && left->parent != subtree
529              || right && right->parent != subtree )
530              throw "parent pointer wrong!";
531
532          // Return our height
533          return left_height;
534      }
535
536
537  public:
538
539      /*
540       * Interface functions
541       */
542
543
544      // Constructor
545      rb_tree() : _root(nullptr)
546      {
547      }
548
549
550      // Destructor
551      ~rb_tree()
552      {
553          _clear( _root );
554      }
555
556
557      // Clear out the data in the tree
558      void clear()
559      {
560          _clear( _root );
561          _root = nullptr;
562      }
563
564
565      // Find data in the tree
566      // Returns nullptr if not found; otherwise the node that
567      // contains the data.
568      node_ptr find( const_reference value )
569      {
570          node_ptr node = _root;
571          while( node ) {
572              if( value < node->data )
573                  node = node->left;
574              else if( value > node->data )
575                  node = node->right;
576              else
577                  break;
578          }
579          return node;
580      }
581
582
583      // Insert data into the tree
584      void insert( const_reference value )
585      {
586          // We need both the link and the parent
587          pair<link_type, node_ptr> where;
588          where = _get_insert_link( value );
589          if( ! where.first )
590              return;
591
592          // Create the node
593          node_ptr node = new rb_node;
594          node->data = value;
595          node->color = RED;
596          node->left = node->right = nullptr;
597          node->parent = where.second;
598
599          // Attach it to the tree
600          _link_set_dest( where.first, node );
601
602          // Balance
603          _insert_balance( node );
604      }
605
606
607      // Erase data from the tree
608      void erase( const_reference value )
609      {
610          node_ptr node = find( value );
611          if( ! node )
612              return;
613
614          node = _replace_and_remove_node( node );
615
616          _erase_balance( node );
617
618          delete node;
619      }
620
621
622      // Make sure that the tree is valid
623      // Throws an error if it isn't.
624      void check()
625      {
626          if( _node_color(_root) == RED )
627              throw "root is red!";
628
629          _check( _root );
630      }
631
632  };
633
634
635
636  /*
637   * Testing section
638   */
639
640
641  // Test insertion
642  // Fills the tree with a lot of random data
643  void test_insertion( rb_tree & tree, int count )
644  {
645      for( int i = 0; i != count; ++i ) {
646          int r = rand() % 3000;
647          tree.insert( r );
648          tree.check();
649      }
650  }
651
652
653  // Test erasing
654  // Erases random data from the tree
655  void test_erasing( rb_tree & tree, int count )
656  {
657      for( int i = 0; i != count; ++i ) {
658          int r = rand() % 3000;
659          tree.erase( r );
660          tree.check();
661      }
662  }
663
664
665  // Main function
666  int main()
667  {
668      try {
669          rb_tree tree;
670          test_insertion( tree, 1000 );
671          test_erasing( tree, 1000 );
672      }
673      catch( const char * e ) {
674          cerr << e << endl;
675          return 1;
676      }
677  }
678

Footnotes and references:

1. Wikipedia, Red-Black Tree. <http://en.wikipedia.org/wiki/Red%E2%80%93black_tree>. 18 April 2012.

Perspectives of a Programmer

Friday, April 20, 2012

Red-Black Trees

2 comments:
